Add loads in 2D

It’s passed a list of dictionaries. There are two options for add loads:

  • Add loads by column

  • Add loads by coordinate

Hint

It’s possible combine and use both options.

Add loads by coordinate

The dictionary has the following keys:

  • “x_coord”: coordinate in X-axis.

  • “y_coord”: coordinate in Y-axis.

  • “x_direc”: indicates if is applied a load in X-direction.

    • If 1 indicates that the load is applied in the negative direction of the X-direction.

    • If 1 indicates that the load is applied in the positive direction of the X-direction.

    • If 0 indicates that no load is applied in the X-direction.

  • “y_direc”: indicates if is applied a load in Y-direction.

    • If 1 indicates that the load is applied in the negative direction of the Y-direction.

    • If 1 indicates that the load is applied in the positive direction of the Y-direction.

    • If 0 indicates that no load is applied in the Y-direction.

  • “force”: The module of the load in Newton.

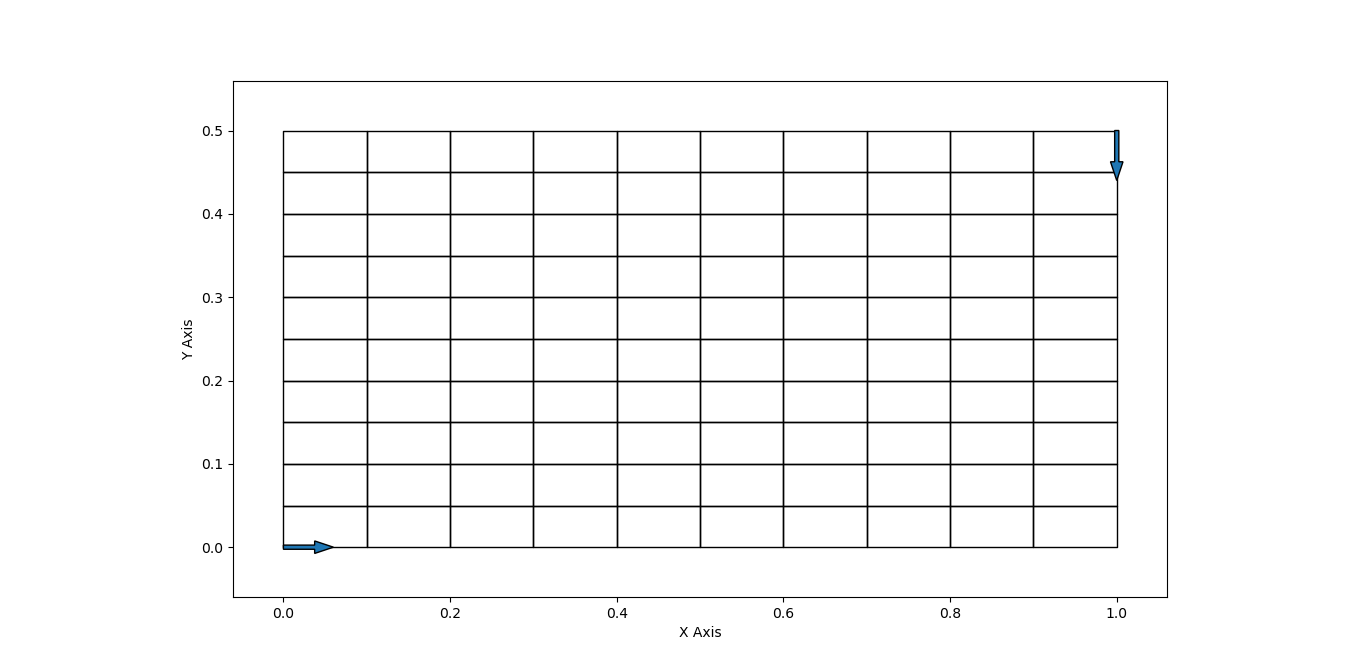

In the Figure 3 two loads are applied in the mesh:

  • A negative force of modulus 100 N is applied in the Y-direction to the node at coordinate (1,0.5).

  • A positive force of modulus 100 N is applied in the X-direction to the node at coordinate (0,0).

In Python language:

load_matrix = [{"x_coord":1, "y_coord":0.5, "x_direc":0, "y_direc":-1, "force":100}, \
                {"x_coord":0, "y_coord":0, "x_direc":1, "y_direc":0, "force":100}]
../_images/force_node.png

Figure 3: 2D mesh with load applied at first and last node.

Add loads by column

The dictionary has the following keys:

  • “coord”: Coordinate.

  • “axis”: Direction that the load is applied. It can be: 1 (X-Axis) or 2 (Y-Axis).

  • “eps”: Margin of error.

  • “x_direc”: indicates if is applied a load in X-direction.

    • If 1 indicates that the load is applied in the negative direction of the X-direction.

    • If 1 indicates that the load is applied in the positive direction of the X-direction.

    • If 0 indicates that no load is applied in the X-direction.

  • “y_direc”: indicates if is applied a load in Y-direction.

    • If 1 indicates that the load is applied in the negative direction of the Y-direction.

    • If 1 indicates that the load is applied in the positive direction of the Y-direction.

    • If 0 indicates that no load is applied in the Y-direction.

  • “force”: The module of the load in Newton.

In the example it’s applied a positive force of modulus 100 N in X-direction to all the nodes with Y=0.1.

load_matrix = [{"coord":0.1, "axis":2, "x_direc":1, "y_direc":0, "force":100, "eps":0.001}]

The Figure 4 shows the load applied in the mesh as the example.

../_images/force_all.png

Figure 4: Load applied at all nodes with Y = 0.1 in 2D mesh.
